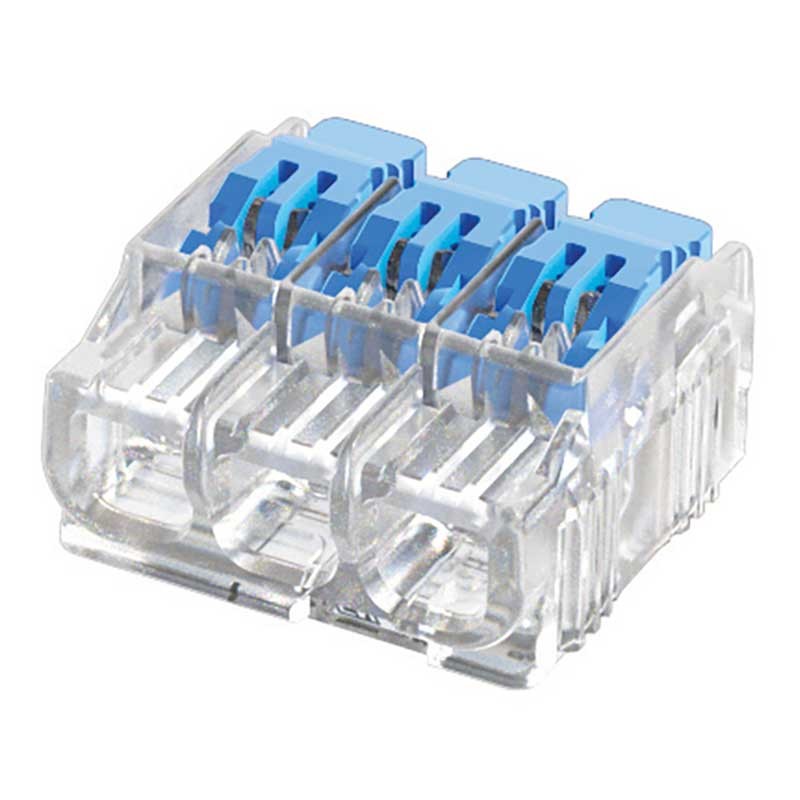

Ideal Electrical 3 Port GEN II Lever Wire Connector 0.14-4mm², 32A (Jar of 50)

Connector, 3 Port GEN II Lever 0.14-4mm², 32A (Jar of 50)
Sign In
Availability: In stock
Part Number
IDL30-0093J
The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes. It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps.

Features & Benefits

  • For use in all applications up to 32A including lighting, access control, radial and final ring circuits
  • Releasable connector - for solid, stranded and flexible wires
  • Innovative levers - opens in the opposite direction of insertion points
  • Compact design - suits tight spaces
  • Easy to use - no need to lift the levers when using on solid wire
  • Continuity check port - for testing
  • Clear shell - allows for verification of connection
  • Secure your cables in seconds - no screwdriwer, no crimping, just strip, push, connect

Wire Crimping Range

  • 0.2 mm2 to 4.0 mm2 (24 - 12 AWG) for solid and rigid stranded wires (= 7 strands)
  • 0.14 mm2 to 4.0 mm2 (24 - 12 AWG) for flexible wires

Specifications

  • Rating: IEC 60998 - 32A, 450V, 85°C (ambient) / UL 486C - 600V, 105°C (working)
  • Approvals: Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
  • Approvals:11:11CE, UKCA, UL and ENEC approved
More Information
Part Number IDL30-0093J
Brand Ideal Electrical
Depth (mm) 19
Width (mm) 19
Height (mm) 9
Pack Quantity 50
Unit of Measure Jar
Vendor Part Number 30-0093J
