DEWDT40270-QZ

DEWALT XR EXTREME RUNTIME Circular Saw Blade 190mm x 24T (Diamond Bore)

DEWDT4084-QZ

DEWALT EXTREME WORKSHOP Circular Saw Blade 160mm x 48T (16/20mm)

DEWALT XR EXTREME RUNTIME Circular Saw Blade 190mm x 36T (Diamond Bore)

C3 grade carbide XR EXTREME RUNTIME saw blade 190mm x 36T (Diamond Bore) for use on first and second fix applications and suitable for cutting wood, plywood, MDF and chipboard
Sign In
Availability: 0
Part Number
DEWDT40271-QZ

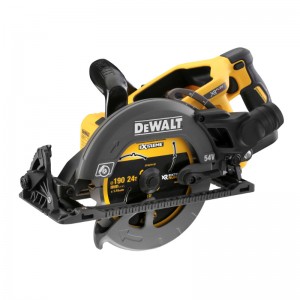

Optimised for use with the DCS577N-XJ DEWALT XR FLEXVOLT Rear Handle Circular Saw. Delivering maximum productivity from the power available. Engineered for first and second fix applications and suitable for cutting hardwood, wood, plywood, MDF and chipboard.

FEATURES & BENEFITS

  • Optimised for cordless producing up to 2X more cuts per charge
  • Patented grind angles for faster cuts with lower force
  • Diamond bore 190mm blade (LHS) provides stronger mounting for use on higher toque circular saws
  • Expansion slots for faster cuts with lower force
  • C3 next generation carbide that can sustain up to 3 regrinds

SPECIFICATIONS

  • Blade Ø: 190mm
  • Bore Ø: Diamond
  • Blade Thickness: 0.82mm
  • Kerf Thickness: 1.55mm
  • Kerf Type: Thin
  • No. of Teeth: 36
  • Tooth Direction: Clockwise
  • Tooth Geometry: ATB+R
  • Tooth Angle: 25°
  • N MAX RPM: 7,000
More Information
Part Number DEWDT40271-QZ
Brand DeWalt
Sub-Brand XR EXTREME RUNTIME
Size Ø (mm) 190
Size Ø (in) 7.5
Thickness (mm) 0.82
Kerf Thickness (mm) 1.55
Kerf Type Thin
Number of Teeth 36
Tooth Geometry ATB+R
Application Wood
Pack Quantity 1
Unit of Measure Each
Vendor Part Number DT40271-QZ
Individual Carton Dimension Height (cm) 0.1
Individual Carton Dimension Width (cm) 22
Individual Carton Dimension Length (cm) 25
Individual Carton Dimension Weight (kg) 0.27
