DEWDT9691-QZ

DEWALT Elite Carbide SDS+ Drill Bit 25 x 450mm

DEWDT9700-QZ

DEWALT EXTREME SDS-plus 4 Piece Concrete Drill Bit 2 Cutter Set

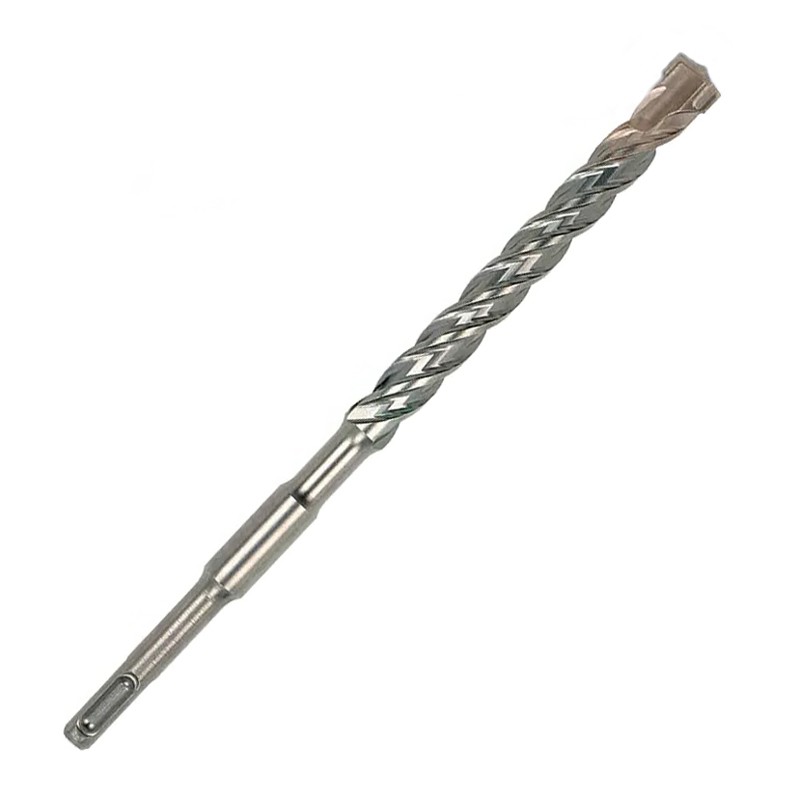

DEWALT Elite Carbide SDS+ Drill Bit 26 x 450mm

Elite Carbide SDS+ drill bit 26 x 450mm
Sign In
Availability: 0
Part Number
DEWDT9692-QZ
EXTREME SDS-plus concrete drill bits feature a solid four cutter carbide tip to deliver a fast and efficient drilling speed. The four flute spiral flute allows for maximum flute entry and enables faster debris removal.

Features & Benefits

  • Part of the Elite Series. Built to last
  • Rebar Strike Resistant. Ideal for drilling holes into concrete. Designed to resist breakage when striking rebar
  • 4 Cutter carbide head for maximum performance
  • High Speed blasting strengthens the bit to reduce the risk of breakage
  • Up to 2x life. Offers more carbide surface area than previous design to increase wear resistance when drilling into concrete
  • Full carbide pilot feature for quick starts and more accurate hole positioning
  • High Speed drilling. 2- Stage flute design with a variable helix pattern quickly moves debris away from the contact zone designed to increase drilling speed
  • Anchor wear mark indicator. For accurate diameter of holes when using the bit to install anchors. Located on the carbide tip of the bit, once the wear mark is no longer visible it is time to change the bit for proper anchor installation
  • Made in Germany

SPECIFICATIONS

  • Ø: 26mm
  • Total Length: 450mm
  • Working Length: 400mm
  • Cutters: 4
More Information
Part Number DEWDT9692-QZ
Brand DeWalt
Sub-Brand ELITE
Size Ø (mm) 26
Length (mm) 450
Working Length (mm) 400
Number of Cutters 4
Application Concrete
Weight (g) 757
Pack Quantity 1
Unit of Measure Each
Vendor Part Number DT9692-QZ
Individual Carton Dimension Height (cm) 2.5
Individual Carton Dimension Width (cm) 5
Individual Carton Dimension Length (cm) 53
Individual Carton Dimension Weight (kg) 0.75
