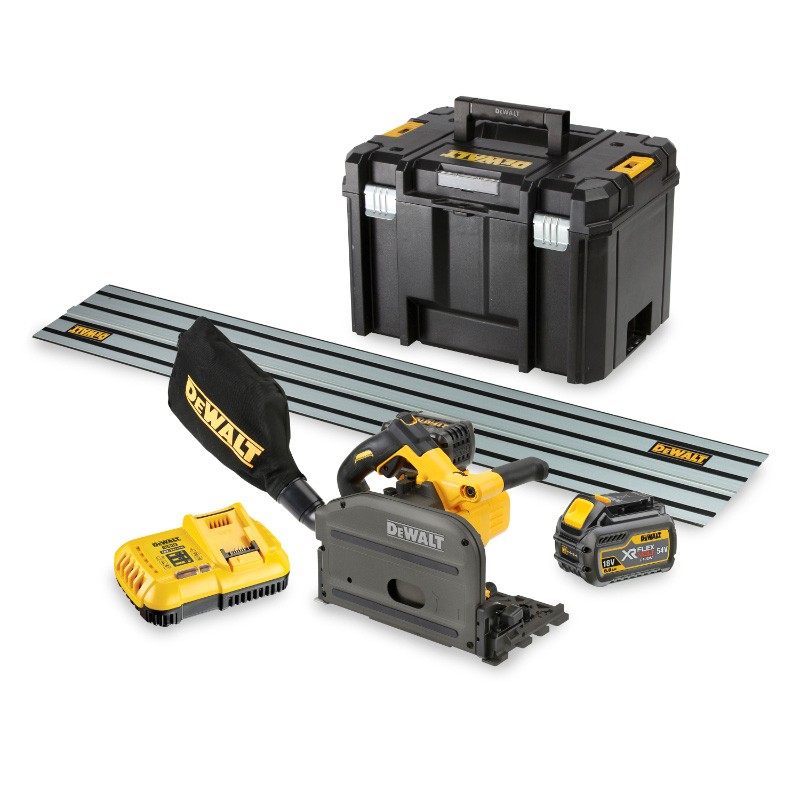

DEWALT 54V XR FLEXVOLT Plunge Saw 165mm (6 1/2") - Bare Unit

DEWALT 54V XR FLEXVOLT 165mm Plunge Saw - 2 x 6Ah

54V XR FLEXVOLT 165mm Plunge Saw - 2 x 6Ah

Sign In

Availability: 0

Part Number

DEWDCS520T2-XE

FEATURES & BENEFITS

54v FlexVolt system giving corded performance	DEWALT BRUSHLESS Motor for power, extended run-time, reliability & durability
A 42 tooth blade gives a fine and accurate finish with very little breakout in laminates	The anti kickback function stops the saw from moving backwards along the rail and helps stop the saw from climbing out of the work piece when making plunge cuts
Parallel plunge allows the user to maintain a smooth and constant hand position while cutting	Variable speed allows the correct speed to be set for different types of materials
Rail adjustment allows the saw to be adjusted accurately to the rail	Full wave electronics maintains a constant speed under heavy load
55mm depth of cut allows the trimming and sizing of most common door sizes	The enclosed guard gives a 90% dust extraction capability

SPECIFICATIONS

54V XR Li-Ion BRUSHLESS	Battery Capacity 6Ah
No Load Speed 2500-4200 rpm	Blade Diameter 165 mm
Blade Bore 20 mm	Bevel Capacity 47 °
Max. Depth of Cut at 90° 59 mm	Max. Depth of Cut at 90°[with guide rails] 55 mm
Max. Depth of Cut at 45° 44 mm	Weight 4.7 kg

INCLUDES

2 x 18/54V 6Ah XR Li-Ion FLEXVOLT Battery Pack	42tooth precision circular saw blade
T-STAK	2x XR FlexVolt 54v Batteries
XR Fast Battery Charger

DEWALT 3 Year Limited Warranty

More Information

More Information
Part Number	DEWDCS520T2-XE
Brand	DeWalt
Tool Type	Cordless
Voltage	54V
Type of Product	Combo Kit
Tool Class	Brushless
Unit of Measure	Each
Vendor Part Number	DCS520T2-XE
Individual Carton Dimension Length (cm)	32
Individual Carton Dimension Width (cm)	43
Individual Carton Dimension Height (cm)	30
Individual Carton Dimension Weight (kg)	9.97
Master Carton Length (cm)	43
Master Carton Width (cm)	32
Master Carton Height (cm)	30
Master Carton Weight (kg)	9.97
