DEWALT Small Mitre Saw Workstation

DEWALT 305mm (12") Double Bevel Slide Compound Mitre Saw (XPS) 1675W

DEWALT 305mm (12") Double Bevel Slide Compound Mitre Saw (XPS) 108V (2x 54V) AC/DC

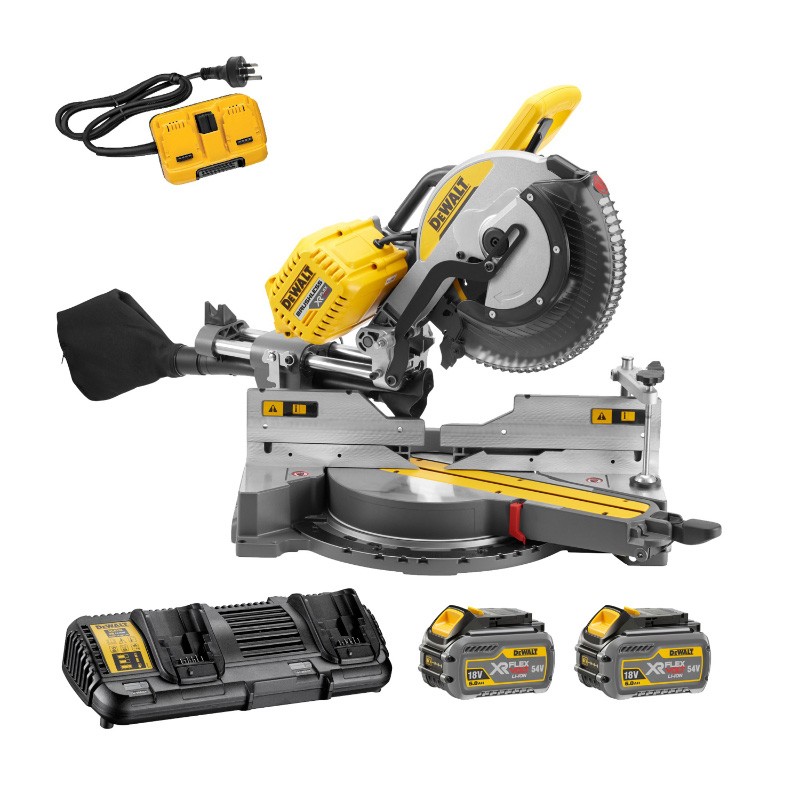

305mm (12") Double Bevel Slide Compound Mitre Saw (XPS) 108V (2x 54V) AC/DC

Sign In

Availability: 0

Part Number

DEWDHS780T2A-XE

FEATURES & BENEFITS

108V BRUSHLESS Cordless, WORLD'S 1ST CORDLESS 305MM COMPOUND SLIDE MITRE SAW, Unprecedented Power & Cut Capacity with the freedom of cordless technology.	Revolutionary AC/DC Powered from either 2 x 54V DEWALT® XR FLEXVOLT™ Battery packs for job site freedom or the AC Mains adaptor for 230V corded workshop use.
Belt Driven, 60° Mitre Right/50° Left, 0-48° Bevel L&R, 76mm x 345mm Capacity @90°	Tall Sliding Fence, XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm	Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool
New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right	Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right	Long life Accuracy in Table and Fence Design

SPECIFICATIONS

Blade Speed 3800 rpm	Blade Bore 30 mm
Blade Diameter 305 mm	Bevel Capacity 49/49 °
Mitre Capacity [right/left] 60/50 °	Cutting Capacity at 90°/45° (W x H) 244 x 76 mm
Cutting Capacity at 90°/90° (W x H) 345 x 76 mm	Cutting Capacity at 45°/90° (W x H) 345 x 44 mm
Max. Depth of Cut [Saws] 170 mm	Weight 25.5 kg

INCLUDES

High Quality 60 tooth blade	Blade spanner
Dust bag	Material Clamp
2 x 54V XR Flexvolt Li-Ion battery packs with state of charge indicator	XR Fast Charger
DCB500 Power Supply

DEWALT 3 Year Limited Warranty

More Information

More Information
Part Number	DEWDHS780T2A-XE
Brand	DeWalt
Tool Type	Cordless
Voltage	2x 54V (108V)
Type of Product	Combo Kit
Tool Class	Brushless
Size	305mm (12")
Unit of Measure	Each
Vendor Part Number	DHS780T2A-XE
Individual Carton Dimension Length (cm)	61
Individual Carton Dimension Width (cm)	52
Individual Carton Dimension Height (cm)	83.5
Individual Carton Dimension Weight (kg)	36.08
Master Carton Length (cm)	52
Master Carton Width (cm)	61
Master Carton Height (cm)	83.5
Master Carton Weight (kg)	36.08
